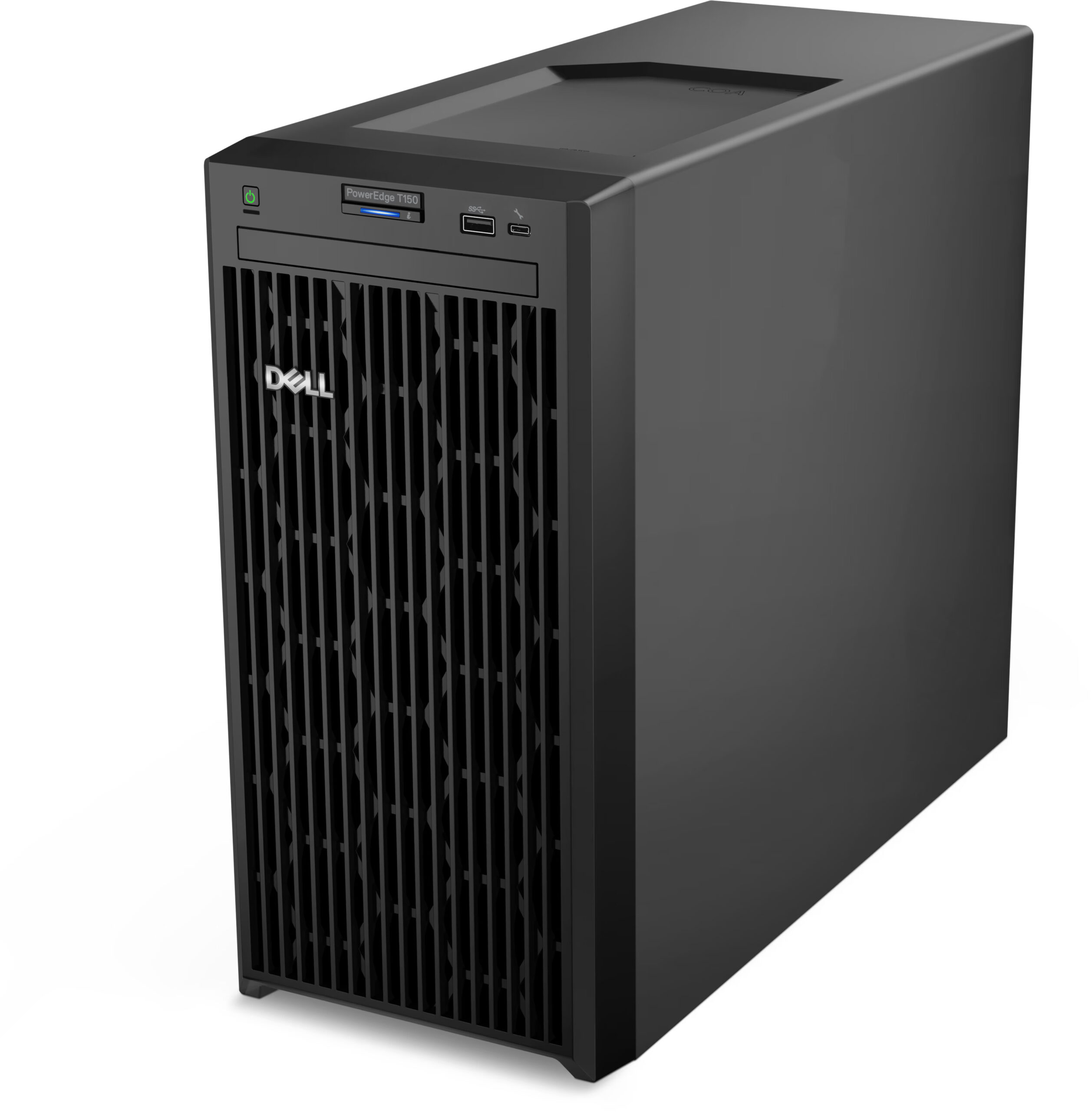

PowerEdge T150 Tower Server
Deliver the value of data
The Dell Technologies PowerEdge T150 affordably addresses common business workloads while delivering compute with an entry-level tower server.
Want more information? Get in touch with our team!
| Tech Specs & Customization | |
|---|---|
| Processor | One Intel Xeon E-2300 series processor with up to 8 cores or One Intel Pentium processor with up to 2 cores |
| Memory | Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s Supports unregistered ECC DDR4 DIMMs only Note: For Pentium processor, maximum memory speed supported is 2666 MT/s |
| Storage Controllers | Internal controllers (RAID): PERC H755, PERC H345, HBA355i, S150 Internal Boot: USB, Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs External HBAs (non-RAID): HBA355e |
| Drive Bays | 4 x 3.5-inch cabled SAS/SATA (HDD/SSDs) max 30.72 TB |
| Power Supplies | 300W Bronze 100-240 VAC, cabled 400W Platinum 100-240 VAC, cabled (available only from Dec’21) |
| Fans | One cabled fan |
| Dimensions | Height: 360 mm (14.17 inches) Width: 175 mm (6.88 inches) Depth: 453.75 mm (17.86 inches) with bezel |
| Form Factor | 4U mini tower server |
| Embedded Management | iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module |
| Bezel | Security bezel |
| OpenManage Software | OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin |
| Mobility | OpenManage Mobile |
| Integrations and Connections | OpenManage Integrations BMC Truesight Microsoft System Center Red Hat Ansible Modules VMware vCenter and vRealize Operations Manager OpenManage Connections IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager Nagios Core Nagios XI |
| Security | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded NIC | 2 x 1 GbE LOM |
| Ports | Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 3.0 Rear Ports 5 x USB 2.0 1 x iDRAC Ethernet port 1 x USB 3.0 1 x Serial port 1 x VGA Internal Ports 1 x USB 3.0 (optional) |
| PCIe | 4 PCIe slots: 1 x16 Gen4 (x16 connector) full height, half length 1 x4 Gen4 (x8 connector) full height, half length 1 x4 Gen3 (x8 connector) full height, half length 1 x1 Gen3 (x1 connector) full height, half length |
| Operating System and Hypervisors | Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi (support only from Dec’21) |
Product Details
Your Innovation Engine for businesses of all sizes
The Dell Technologies PowerEdge T150, powered by Intel® Xeon® E-2300 processors, delivers powerful compute for common business applications and streamlines productivity. It supports 3200 MT/s DDR4 UDIMMs, up to 128 GB for memoryintensive workloads. In addition, to address substantial throughput improvements, the PowerEdge T150 supports PCIe Gen 4 and offers enhanced thermal efficiency to support increasing power and thermal requirements. With quiet, office-friendly acoustics, the PowerEdge T150 is an ideal tower server for business critical workloads and point of sale transactions for small to midsized businesses inside and outside of the data center.Increase efficiency and accelerate operations with autonomous collaboration
The Dell Technologies OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos to focus on growing the business. The Dell Technologies OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.- Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
- Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
- Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation • Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible, and many other tools
Protect your data assets and infrastructure with proactive resilience
The Dell Technologies PowerEdge T150 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.- Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
- Maintain server firmware safety with digitally signed firmware packages
- Prevent unauthorized configuration or firmware change with system lockdown
- Securely and quickly wipe all data from storage media, including hard drives, SSDs, and system memory with System Erase
- UEFI Secure Boot prevents systems from booting from unsigned or unauthorized pre-boot device firmware, applications, and OS boot loaders, protecting systems from malware corrupting the startup process
Sustainability
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services.
PowerEdge T150
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services.
- Small to mid-sized businesses
- Enhanced thermal efficiency and quiet, office-friendly acoustics for remote office/branch office
- Collaboration and sharing
- Mail, messaging and file, print
