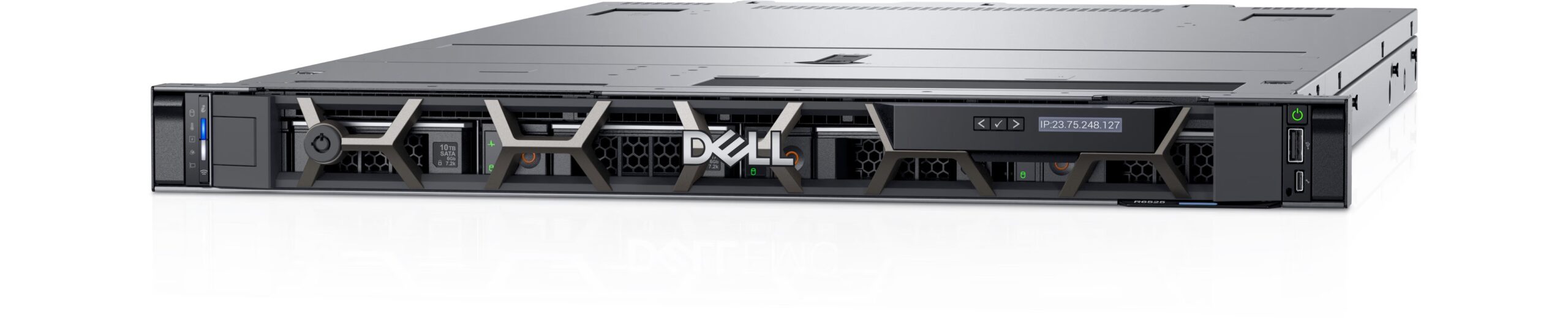

PowerEdge R6525 Rack Server
Ideal for High Performance Dense-Computing environments
The Dell Technologies PowerEdge R6525 Rack Server is a highly configurable, dual-socket 1U rack server that delivers outstanding balanced performance and innovations for dense compute environments to address traditional and emerging workloads and applications.
Want more information? Get in touch with our team!
| Tech Specs & Customization | |
|---|---|
| Processor | Two 2nd or 3rd Generation AMD EPYCTM Processors with up to 64 cores per processor |
| Memory | Up to 32 x DDR4 Maximum RAM RDIMM: 2 TB LRDIMM: 4TB Max Bandwidth up to 3200 MT/S |
| Availability | Hot plug redundant Hard drives, Fans, PSUs |
| Controllers | PERC 10.5 – HBA345, H345, H745, H840, 12G SAS HBA PERC 11 – H755, H755N Chipset SATA/SW RAID (S150): Yes |
| Drive Bays | Front Bays: Up to 4 x 3.5” hot plug SAS/SATA (HDD) Up to 8 x 2.5” hot plug SAS/SATA (HDD) Up to 12 x 2.5” (10 Front + 2 Rear) hot plug SAS/SATA/NVMe Optional Internal: 2 x M.2 (BOSS) Optional Rear: 2 x M.2 (BOSS-S2) |
| Power Supplies | 800W Platinum 1400W Platinum 1100W Titanium |
| Fans | Hot plug Fans |
| Dimensions | Height: 42.8mm (1.7”) Width: 434.0mm (17.1”) Depth: 736.54mm (29”) Weight: 21.8kg (48.06lbs) |
| Rack Units | 1U Rack Server |
| Embedded Management | iDRAC9 iDRAC RESTful API with Redfish iDRAC Direct Quick Sync 2 BLE/wireless module |
| Bezel | Optional LCD bezel or security bezel |
| OpenManage™ SW | OpenManage Enterprise: OpenManage Enterprise Power Manager OpenManage Mobile |
| Integrations & Connections | OpenManage Integrations: BMC Truesight Microsoft® System Center Redhat® Ansible® Modules VMware® vCenter™ OpenManage Connections: IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager I Nagios® Core Nagios® XI |
| Security | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown TPM 1.2/2.0, TCM 2.0 optional |
| Embedded NIC | 2 x 1 GbE LOM ports |
| Networking Options (NOC) | OCP x16 Mezz 3.0 + 2 x 1GE LOM |
| GPU Options | Up to 2 Single-Wide GPU |
| Ports | Front Ports: 1 x Dedicated iDRAC direct micro-USB 1 x USB 2.0 1 x VGA Rear Ports: 1 x Dedicated iDRAC network port 1 x Serial (optional) 1 x USB 3.0 1 x VGA |
| PCIe | 3 x Gen4 slots (x16) at 16GT/s |
| Operating Systems & Hypervisors | Canonical® Ubuntu® Server LTS Citrix® HypervisorTM Microsoft® Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
Product Details
Deliver breakthrough performance, innovation and density for traditional and emerging workloads
The Dell Technologies PowerEdge R6525 is a highly configurable, dual-socket 1U rack server that delivers outstanding balanced performance and innovation for dense compute environments. It’s ideal for traditional and emerging workloads and applications. High-level features include:- 64 processing cores and faster data transfer speeds with PCIe Gen 4
- Up to 3200MT/s memory speed to reduce latency and deliver faster response
- Multi GPU support to accelerate end user VDI performance
- Highest core count PE 1U server with cryptographic isolation between hypervisor and VMs
Increase efficiency and accelerate operations with an automated infrastructure
The Dell Technologies OpenManage™ systems management portfolio delivers an efficient and comprehensive solution for PowerEdge servers through tailored, automated, and repeatable processes.- Automate server life cycle management with scripting via the iDRAC Restful API with Redfish conformance.
- Simplify and centralize one to many management with the OpenManage Enterprise console.
- Utilize the OpenManage Mobile app and PowerEdge Quick Sync 2 to easily manage servers using a phone or tablet.
- Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist
Fortify your data center with integrated security
Every PowerEdge server is designed with a cyber resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.- Enhance security with platform enablement of AMD Secure Memory Encryption (SME) and Secure Encrypted Virtualization (SEV).
- Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust.
- Maintain server firmware safety with digitally signed firmware packages.
- Detect and remediate unauthorized or malicious change with drift detection and system lockdown.
- Securely and quickly wipe all data from storage media including hard drives, SSDs and system memory with System Erase.
PowerEdge R6525
The PowerEdge R6525 provides a unique dense – 1U, dual-socket server – to address and scale traditional and emerging workloads like:
- High Performance Computing (HPC)
- Virtual Desktop Infrastructure (VDI)
- Network Functions Virtualization (NFV)
