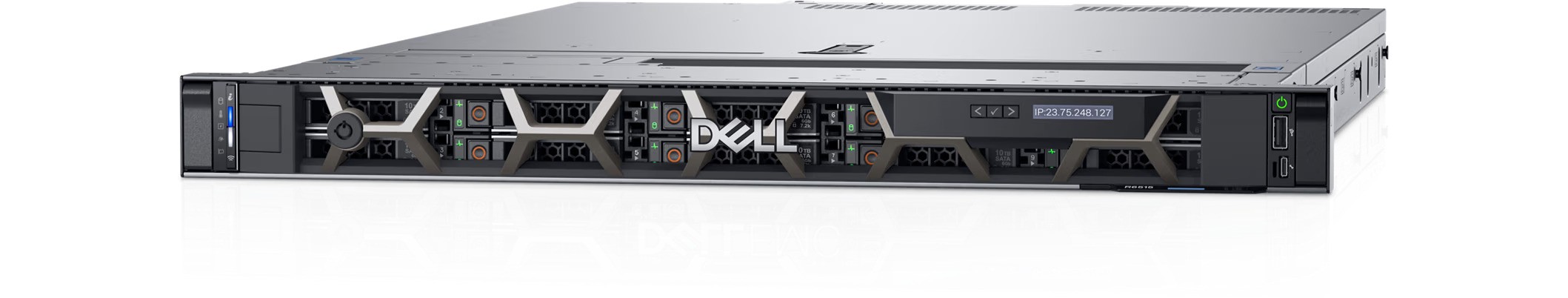

PowerEdge R6515 Rack Server
Dual-socket performance in a single-socket 1U rack design
The Dell Technologies PowerEdge R6515 rack server is a dense single-socket 1U rack server delivering peak performance and excellent TCO.
Want more information? Get in touch with our team!
| Tech Specs & Customization | |
|---|---|
| Processor | One 2nd or 3rd Generation AMD EPYCTM Processor with up to 64 cores |
| Memory | DDR4: Up to 16 x DDR4 RDIMM (1TB), LRDIMM (2TB), bandwidth up to 3200 MT/S |
| Controllers | HW RAID: PERC 9/10 – HBA330, H330, H730P, H740P, H840, 12G SAS HBA SATA/SW RAID: S150 |
| Drive Bays | Front Bays: Up to 4x 3.5” Hot Plug SAS/SATA HDD Up to 10x 2.5” Hot Plug SAS/SATA/NVMe Up to 8x 2.5” Hot plug SAS/SATA Internal: Optional 2 x M.2 (BOSS) |
| Power Supplies | 550W Platinum |
| Fans | Standard/High-Performance FANs N+1 Fan redundancy. |
| Dimensions | Height: 42.8 mm (1.7”) Width: 434.0mm (17.09”) Depth: 657.25mm (25.88”) Weight: 16.75 kg (36.93 lb) |
| Rack Units | 1U Rack Server |
| Embedded Management | iDRAC9 iDRAC RESTful API with Redfish iDRAC Direct Quick Sync 2 BLE/wireless module |
| Bezel | Optional LCD or Security Bezel |
| OpenManage™ SW: Consoles | OpenManage Enterprise OpenManage Enterprise Power Manager |
| Mobility | OpenManage Mobile |
| Tools | Dell Technologies RACADM CLI Dell Technologies Repository Manager Dell Technologies System Update Dell Technologies Server Update Utility Dell Technologies Update Catalogs iDRAC Service Module IPMI Tool OpenManage Server Administrator OpenManage Storage Services |
| Integrations & Connections | OpenManage Integrations: BMC Truesight Microsoft® System Center Redhat® Ansible® Modules VMware® vCenter™ OpenManage Connections: IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager I Nagios® Core Nagios® XI |
| Security | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown TPM 1.2/2.0, TCM 2.0 optional |
| Embedded NIC Networking Options (NDC) | 2 x 1GbE 2 x 10GbE BT 2 x 10GbE SFP+ 2 x 25GbE SFP+ |
| GPU Options | Up to 2 Single-Wide GPU |
| Ports | Front Ports: 1 x Dedicated iDRAC direct micro-USB 1 x USB 2.0 1 x Video Rear Ports: 2 x 1GbE 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x Video Internal Ports: 1 x USB 3.0 |
| PCIe | Up to 2: 1 x Gen3 slot (1 x16) 1 x Gen4 slot (1 x16) |
| Operating Systems & Hypervisors | Canonical® Ubuntu® Server LTS Citrix® HypervisorTM Microsoft® Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
Product Details
Deliver breakthrough performance, innovation and density for traditional and emerging workloads
Data center evolution starts with modern platforms that scale easily and are optimized for application performance. The PowerEdge R6515 is built upon a scalable system architecture and provides choice and flexibility to meet performance demands. High-level specifications:- 100%1 more processing cores and faster data transfer speeds with PCIe Gen 4
- 20%2 more memory performance for scale out environments
- Improved TCO with VM density and SQL performance improvements
- High parallelism for low latency on ROBO and Dense Azure Stack HCI
Increase efficiency and accelerate operations with an automated infrastructure
The Dell Technologies OpenManage™ systems management portfolio delivers an efficient and comprehensive solution for PowerEdge servers through tailored, automated, and repeatable processes.- Automate server life cycle management with scripting via the iDRAC Restful API with Redfish conformance.
- Simplify and centralize one to many management with the OpenManage Enterprise console.
- Utilize the OpenManage Mobile app and PowerEdge Quick Sync 2 to easily manage servers using a phone or tablet.
- Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist
Fortify your data center with integrated security
Every PowerEdge server is designed with a cyber resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.- Enhance security with platform enablement of AMD Secure Memory Encryption (SME) and Secure Encrypted Virtualization (SEV).
- Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust.
- Maintain server firmware safety with digitally signed firmware packages.
- Detect and remediate unauthorized or malicious change with drift detection and system lockdown.
- Securely and quickly wipe all data from storage media including hard drives, SSDs and system memory with System Erase.
PowerEdge R6515
The Dell Technologies PowerEdge R6515 rack server is a dense single-socket 1U rack server delivering peak performance and excellent TCO. Ideal for:
- Virtualization
- Hyper-Converged Infrastructure (HCI)
- Network Functions Virtualization (NFV)
